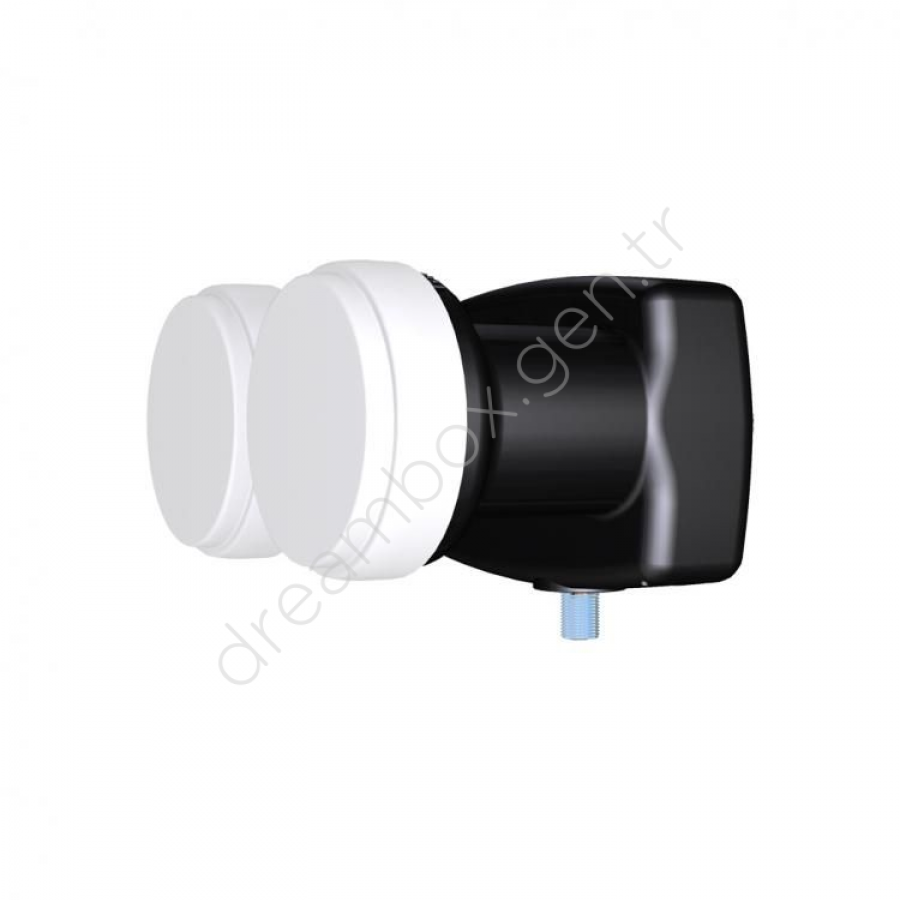

Aralarında 6° fark bulunan uydular için tasarlanmış 40mm tekli LNB
ÖR: 7° Eutelsat (Digiturk) ve 13° Hotbird uyduları
ÖR: 13° Hotbird ve 19.2° Astra uyduları
| Low Band Input Frequency Range | 10.7 11.7 GHz |
| Low Band Output Frequency Range | 950 1950 MHz |
| Low Band LO Frequency | 9.75 GHz |
| High Band Input Frequency Range | 11.7 12.75 GHz |
| High Band Output Frequency Range | 1100 2150 MHz |
| High Band LO Frequency | 10.6 GHz |
| Noise Figure | 0.2 dB Typ. (0.7 dB Max.) |
| LO Initial Accuracy | +/- 1.0 MHz Max. |
| LO Temperature Drift | +/- 3.0 MHz Max. |
| Phase Noise ( 10 kHz) | – 90 dBc / Hz Max. |
| Conversion Gain | 50 62 dB. |
| Gain Ripple (Over 26 MHz Bandwidth) | +/- 0.75 dB |
| Gain Variation (Over Full Band) | +/- 4 dB Max. |
| Image Rejection | 40 dB Min. |
| 1 dB Compression Point ( Output) | 0.0 dBm Min. |
| Control, Satellite A/B Selection | DiSEqC 1.0 (Sat A = Hotbird 13° East, Sat B = ASTRA 19.2° East) |
| Cross Polarization Isolation | 22 dB Min. |
| Output VSWR | 2.5 : 1 |
| In-Band Spurious | – 60 dBm Max. |
| Current Consumption | 150 mA Max. 11 20 V |
| Operating Temperature | – 30 °C + 60 °C |
| Output Impedance | 75 Ω |
| Output Connector | F-Type (Female) |
| Weight | 270 g |
| Recommended Dish Size | 75 85 cm (F/D = 0.6) |
| Monoblock Mounting Bracket | 40 mm |
